Bellows Lifters and Special Hooks

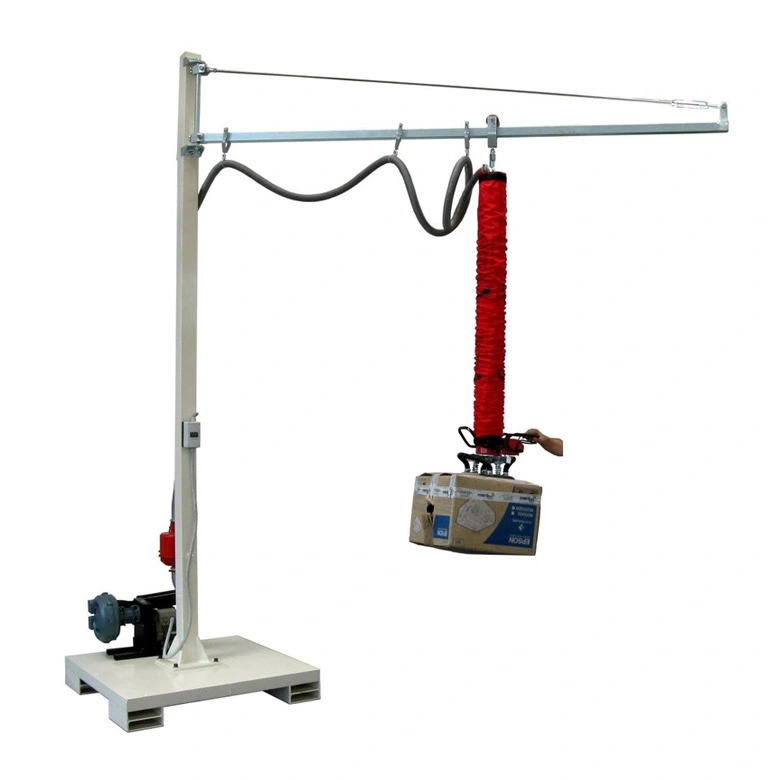

Bellows lifters perform lifting and gripping of objects using only vacuum, generated by an electrically powered impeller or a compressed air Venturi tube. Bellows lifters, also called lifting tubes, are particularly suitable for practical and fast handling of boxes, bags, panels, sheets, and cheese forms. A special bellows lifter, model TP, has been developed specifically for the rapid handling of packages and suitcases of different shapes, which has become commonly used in airports, at freight forwarders, and at postal services. Eurotec Impianti is able to supply this type of manipulator also for food environments and for explosion-risk areas classified ATEX. Lifting tubes are supplied suspended from jib cranes, articulated arm cranes, or light push overhead cranes. The cranes can be mounted on a self-supporting fork-liftable base for using the lifter in multiple positions, without the need for any floor anchoring.
This type of industrial manipulator can be manufactured entirely in STAINLESS STEEL upon request.
Capacities from 15 kg to 280 kg.
Vertical stroke from 1600 mm to 4000 mm.
Working radius upon request.
